The Reciprocating Revo 2-D/ 1-D Hip Joint

• Revo-
• Revo-AG-

2D / 1D 2D 1D

Custom fabricated rocker bar mechanism No Yes

Size Please Choose

Amount 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

€

Add To Cart

Please choose a size first.

---

A special feature of the Revo 2-D hip joints is the 7+7 degree positioning of the movement axis.

The first joint angle, seen from the front, is slanted 7 degrees from the vertical in order to permit pelvic rotation. This rotation represents movement of the trunk in relation to the lower extremity, which allows the legs to remain aligned in the chosen walking direction.

The second 7-degree angle, viewed from above, is slanted inwardly and anteriorly. It allows the joint axis to be anteriorly offset and prevents pinching during sitting.

Functions of the Revo Hip Joint

Locked

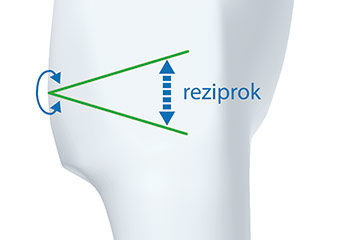

Extension reciprocally guided

Flexion reciprocally guided

Pelvic rotation and step length
with Revo-2-D

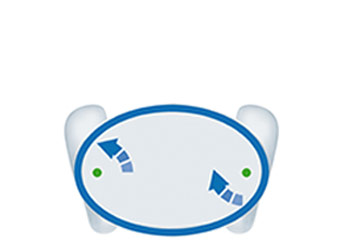

Energy saving pelvic rotation with Revo-2-D

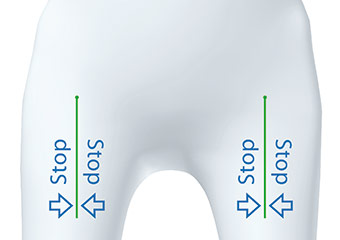

Ab- and adduction blocked

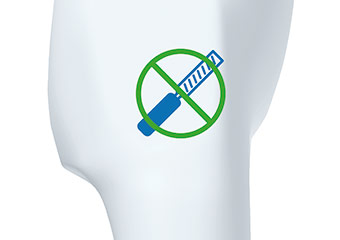

No grinding necessary

Custom Fabricated Pelvic Connection

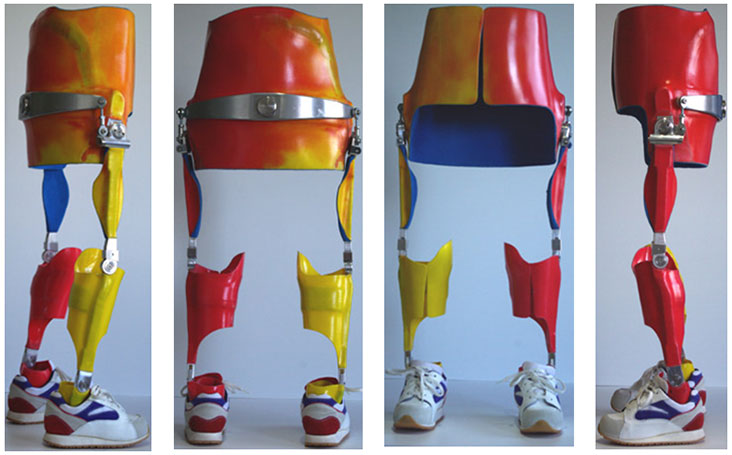

Gallery

Other Special Features

• Weight classification ensures the system is stable even with large patients.
• Joint sizes small to extra-large use an easy to operate safety lock which prevents accidental opening of the joint. Revo-infant uses a lever mechanism for added security with smaller patients.
• Can be detached from the pelvic band, permitting modifications at a later time.
• Developedfor the unilateral joint system.
• Rigid connecting plate cannot be bent.
• Compact size allows the orthosis to be worn under clothing and in a wheelchair.

All info about REVO- hip joints
